Grid box high voltage power resistor enclosure - BOX

Product Detail

Token Electronics offers power resistors mounted in BOX-type enclosures, which can be pre-wired for easy installation both at factory and on industrial job sites. The BOX series design allows virtually unlimited combinations of power wirewound resistor units within the enclosure to meet specific customer requirements. The BOX series is capable of absorbing high energy at high voltage while maintaining a non-inductive characteristic (for the non-inductive version). Models rated up to 4800 watts are available, depending on the required resistance value. Terminal blocks, thermal switches, conduit knockouts, fusing, and fans are available as options. The BOX Series (available with grid, screened cover, or solid bottom plates) offers excellent protection and safety. This assembly-type enclosure can house the DR Series (round-wound power units) or the DQ Series (wave-shaped ribbon-wound power units). For large-scale applications, awelded frame construction is used to ensure a robust and durable design suitable for both indoor and outdoor resistor installations. Terminal blocks, thermal switches, conduit knockouts, fusing, and fans are available as options.

Features:

Excellent heat dissipation
High power load capability and durability
Low temperature coefficient that is directly proportional

Applications:

Dynamic braking resistors
Load banks
Motor starting resistor
Plugging resistor
Power load measurements
Electric distribution resistors
Power industrial machinery resistors
Instrumentation
Automation control installations

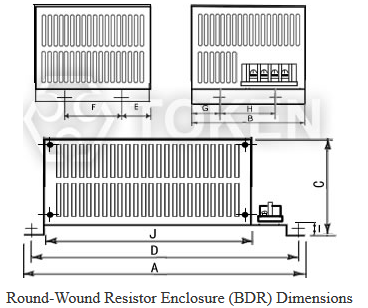

Round-wound enclosure dimensions (BDR 200W-3200W) :

Power rating [W]	Dimensions [mm]											Resistance range [Ω]
Power rating [W]	Case	A	B	C	D	E	F	G	H	I	J	Resistance range [Ω]
200	A	345	90	76	325	45		43		8	268	5.5~20K
400	A	345	90	76	325	45		43		8	268	5~40K
400	B	450	152	100	428	30	90	74		10	355	4.5~40K
800	B	450	152	100	428	30	90	74		10	355	4~80K
1200	C	450	300	100	428	74	146	74	146	10	355	3.5~120K
1600	C	450	300	100	428	74	146	74	146	10	355	3~160K
2000	D	560	250	195	535	27	190	122		10	420	2.5~200K
2400	D	560	250	195	535	27	190	122		10	420	2~240K
2800	D	560	250	195	535	27	190	122		10	420	1.5~280K
3200	D	560	250	195	535	27	190	122		10	420	1~320K

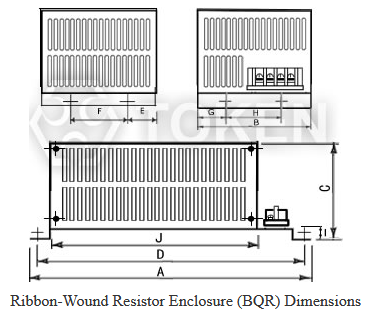

Ribbon-Wound Enclosure dimensions (BQR 300W-4800W) :

Power rating [W]	Dimensions [mm]											Resistance range [Ω]
Power rating [W]	Case	A	B	C	D	E	F	G	H	I	J	Resistance range [Ω]
300	A	345	90	76	325	45		43		8	268	5.5~30
600	A	345	90	76	325	45		43		8	268	5~60
600	B	450	152	100	428	30	90	74		10	355	4.5~60
1200	B	450	152	100	428	30	90	74		10	355	4~120
1800	C	450	300	100	428	74	146	74	146	10	355	3.5~180
2400	C	450	300	100	428	74	146	74	146	10	355	3~240
3000	D	560	250	195	535	27	190	122		10	420	2.5~300
3600	D	560	250	195	535	27	190	122		10	420	2~360
4200	D	560	250	195	535	27	190	122		10	420	1.5~420
4800	D	560	250	195	535	27	190	122		10	420	1~480

Token industrial power wirewound resistors are made in Asia. High quality products, they will match your application needs.
