Token Electronics DST tubular ceramic insulator features a fixed number of windings and is wrapped with a heavy alloy wire that serves as the resistive element. The winding pattern is adjusted according to the required resistance value, after which the component terminals are mounted. The metal parts are heavily plated to prevent oxidation at high operating temperatures and to protect against corrosion. This power wirewound resistor offers excellent heat resistance and dissipation, a low and stable temperature coefficient, and is well-suited for applications involving short-duration current surges.
Applications:
- Motor starters
- Electric distribution resistors
- Load measurement systems
- Industrial machinery resistors
- Current-limiting resistors
- Automation and control installations
- Dynamic braking resistors
- Load dump resistors
- Instrumentation

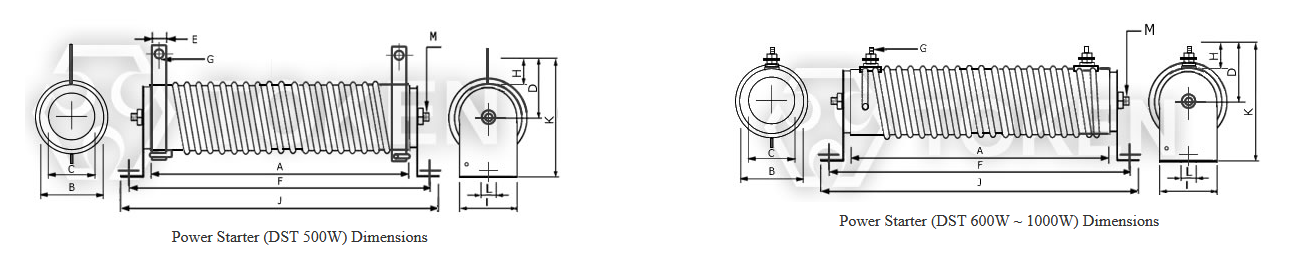

Dimensions :
| Wattage rating [W] | Dimensions [mm] A | B | C | D | E | F | G | H | I | J | K | L | Resistance Range [Ω] |
| 500 | 280 | 40 | 23 | 45 | 15 | 326 | 6 | 22 | 34 | 346 | 85 | 8 | 3.5~7 |
| 600 | 300 | 44 | 26 | 50 | 15 | 342 | 8 | 32 | 34 | 362 | 90 | 8 | 0.5~3 |
| 1000 | 420 | 48 | 30 | 56 | 15 | 470 | 8 | 32 | 40 | 490 | 105 | 9 | 0.8~3 |
Token industrial power wirewound resistors are made in Asia. High quality products, they will match your application needs.
