BSR-BSQ

Token Electronics provides enclosures designed to house virtually unlimited combinations of resistors (DR or DQ Power Series). Token's high-current, adjustable power BSR and BSQ resistors feature a unique enclosure design, accommodating everything from a single enclosure to hundreds of units, supporting a variety of resistor packages. Key quality design features include stainless steel grids and terminals, high-temperature insulation, welded construction, and end frames with gussets for added mechanical strength. Slotted mounting holes ensure easy installation. The enclosures also offer a flexible range of assembly options for convenient use and installation. BSQ ribwound resistors are particularly effective where high energy must be dissipated at low ohmic values. Replacements for many standard BSR round-wire resistors are available, providing significant savings in both space and cost.

Features:

• Resistance tolerance: K(±10%)
• High power and high current applications
• Flame resistant and rugged lead free coating
• One-of-a-kind enclosure application to fit mount housing various resistor packages

Rotary slide dimensions (BSR) :

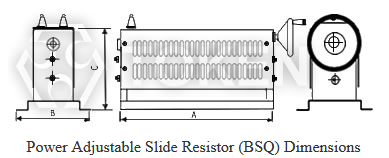

Rotary slide dimensions (BSQ) :

Token industrial power wirewound resistors are made in Asia. High quality products, they will match your application needs.
