TL431/A/C

HTC Korea TL431 is a three-terminal adjustable shunt regulator with specified thermal stability over applicable temperature VREF (Approx. 2.5V) and 40V with two external resistors. This device has a typical dynamic output impedance of 0.2Ω. Active output circuitry provides a very sharp turn-on characteristic, making this device excellent replacement for zener diodes in many applications. The TL431 is characterized for operation from -40°C to +125°C.

TL431A/C features :

• Programmable output voltage to 40V
• Guaranteed 0.5%reference voltage tolerance
• Low (0.2Ω Typ.) dynamic output impedance
• Cathode current range (continuous) - 100 ~ 150 mA
• Equivalent full range temperature coefficient of 50ppm/°C
• Temperature compensated for operation over full rate operating temperature range
• Low output noise voltage
• Fast turn-on response

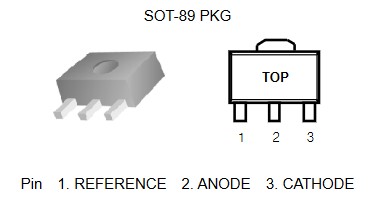

• TO-92, SOT-89 or SOT-23 3L package

HTC Korea shunt regulators are designed in South Korea. High quality products, they will match your application needs.
